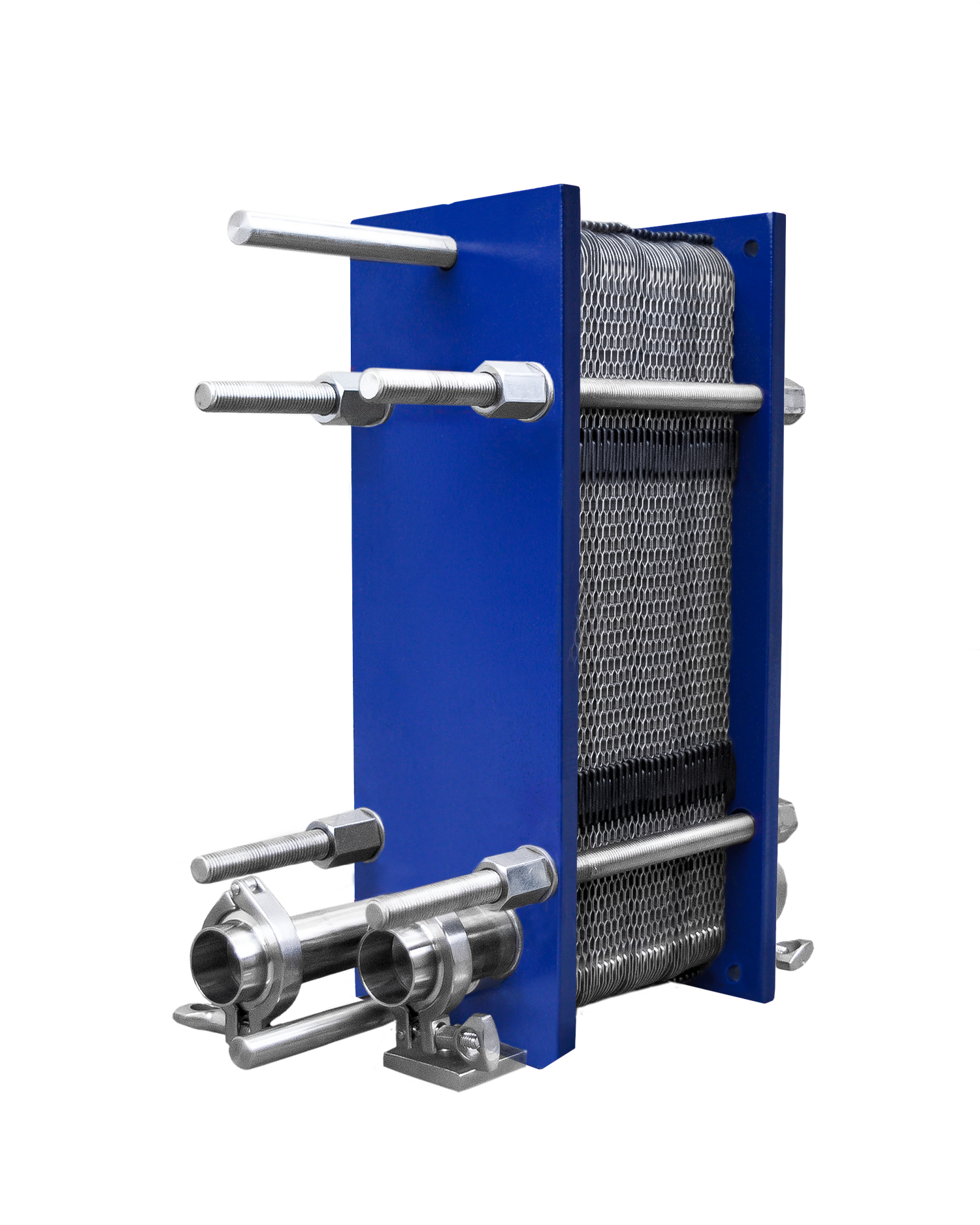

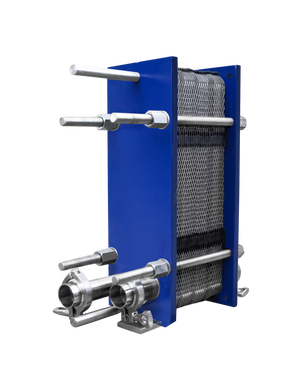

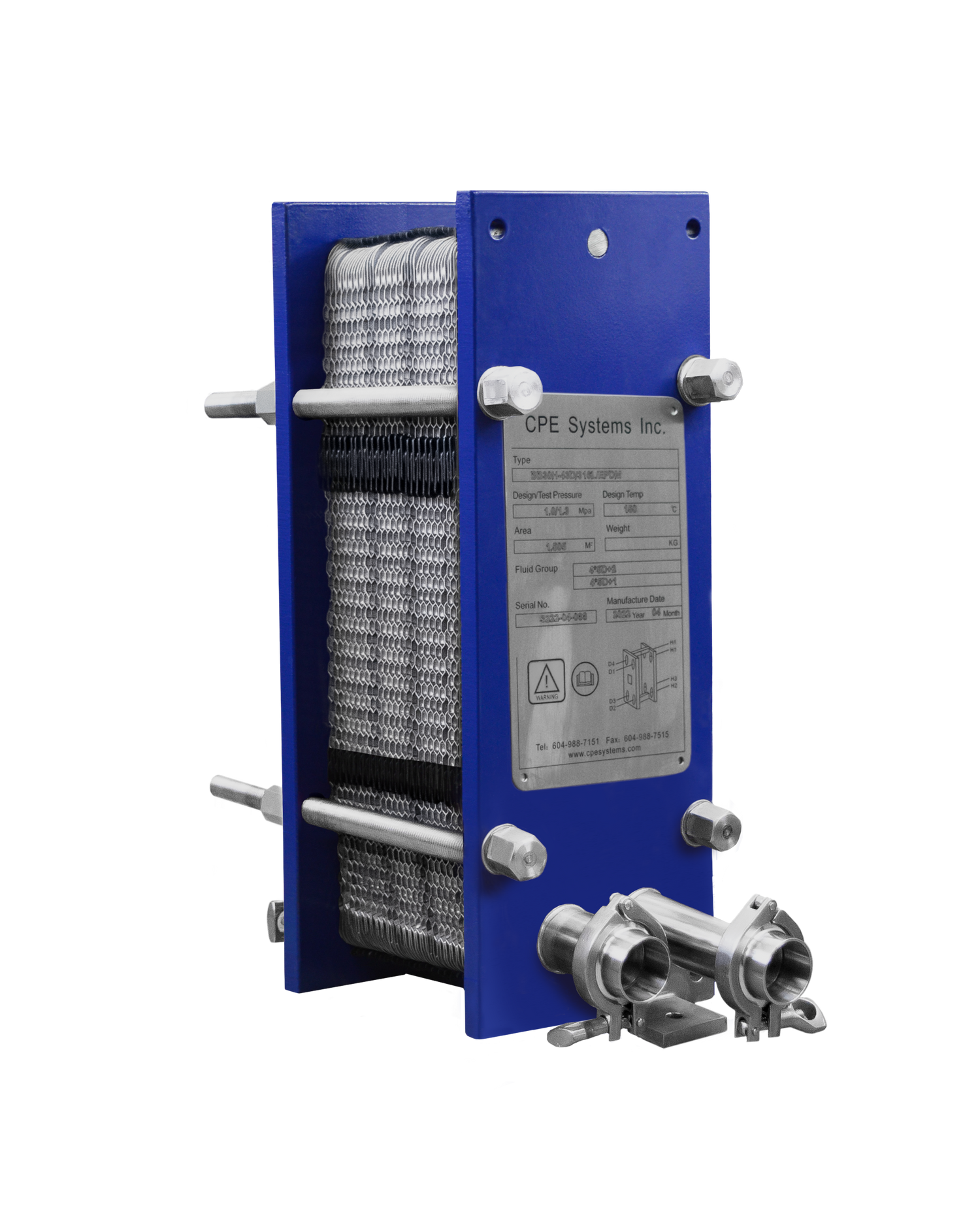

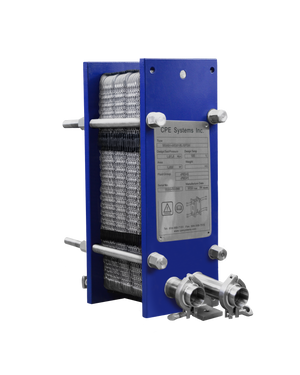

CPE30H-XXD Plate Heat Exchanger
Free Gift

  • 1,125.00
  • Save $0.00

Call for Pricing

HEAT EXCHANGER / WORT CHILLER

The CPE30D-XXD is a brewery heat exchanger for cooling wort from 200° F to 70° F using city water at around 50 F. This heat exchanger is designed so that the discharged water is hot enough to put into your HLT for your next brew. They are designed to cool a batch in approximately 30 minutes.

Technical Specifications

Frame Material: Carbon Steel

Surface Area: From 6.5 ft² to 20 ft²

Plates: 0.5mm 316ss

Gaskets: NBR clip on gaskets

Design: Dual pass flow

Connections: 1.5" Water connections X 1.5" Tri-Clamp Wort connections

Frame: 12L Frame length, Max plates: 60
